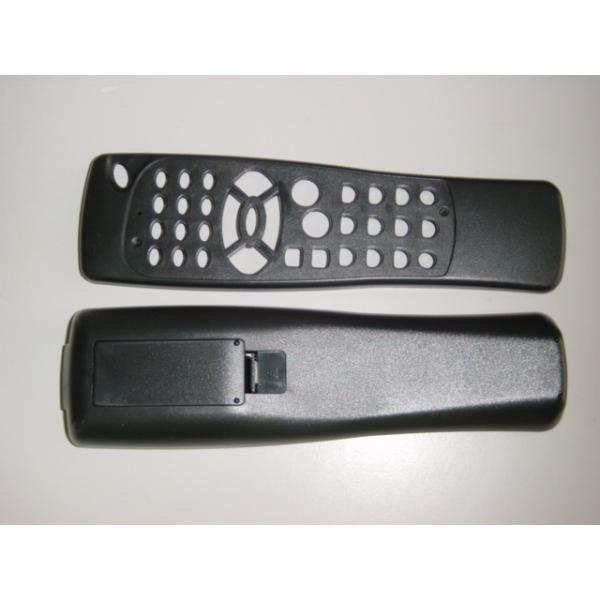

Cold Runner Fiber Injection Molding , Custom Injection Molded Plastic Parts
Advantage
1. Parts design.
2. R&D products.
3. Prototype design and production assembly.
4. Widely used design softwares for all design works.
5. Mould design and manufacture
6. Plastic Part injection and production
Specifications:
| Name |
Descriptions |
| Mould material |
45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc.(Hardness 35~55HRC) |
| Mould base |
Standard mold base,LKM, HASCO ect. |
| Cavity |
Single/multi |
| Runner |
Hot/cold |
| Ejection system |
Motor/hydraulic cylinder/stripping plate/angle pin,etc |
| Cooling system |
In core baffle and in cavity plate chain drilling type cooling |
| Design software |
UG, PROE, CAD, CAXA ect. |
| Plastic material |
PP, PC, PS, PE, PU, PVC, ABS, PA66,PMMA, 50% ,35%,15% FIBER ect. |
| Surface treatment |
Polish,texture,sandblasting,chrome |
| Mould life |
300000-500000 shots |
| Tolerance |
0.02mm -0.05mm |
| Delivery time |
Sample making 3-7 days,mold making 15-40 days based on molds structure |
| Pacakge |
POLYWOOD case |
| Specification |
Depends on customer's DRAWINGS |
| Dimensions |
200*60*20mm |
| |
A Grade |
B Grade |
C Grade |
D Grade |
| Mold base standard |
HASCO/DME |
LKM |
LKM |
Chinese Local |
| Cavity steel |
H13,2344,2343, |
718,738,P20HH, |
Local P20,WY718 |
Aluminum,S50C |
| 8407 Heat Hard steel |
NAK80 |
| Standard |
HASCO,DME |
LKM |
Chinese Local |
/ |
| Mold life |
>500,000-3000,000 |
300,000-500,000 |
100,000-300,000 |
>10000 |
| Runner |
Hot runner,cold runner |
Hot runner,cold runner |
Cold runner |
Cold runner |
| Mold price |
Most expensive |
Expensive |
Cost-effective |
Cheapest |
Terms and condictions
| Payment terms |
Mold: 40%T/T deposit, 30% T/T after T0 and 30% T/T after sample approval |
| Product: 50% deposit, 50% before shipment |
| Trade terms |
FOB Shenzhen for molds, EXWorks for Parts |
| Delivery time |
Usually 30 days for molds, 25 days for products |
| Package |
well packed for any damage during transport, such as pp bag or bubble bag and carton and pallet, it can be discussed |
| Minimum |
1 set for mold, 3000pcs for products |
Packaging Details
1. For sample: according to the dimension of the plastic parts, we will choose a correect box to avoid the damage during the delivery.
2. For bulk:
1) One piece of plastic product with one plastic bag.
2) Putting these single plastic products into standard export carton.
3) Pallets also can be provided if you need.
Injection molding applications
Household utility ware,auto components,Computer electronics,Electronics components,Field mower,Sorting Machine,Marketing samples,Medical & dental products,Model shops, toys, hobby, New product design & development,Furniture Design,Civil Engineering,Construction, Marine Industry,Garden Products,Military industry.
